Marine Facilities Cables – Power Solutions for the Maritime Industry

TELE-FONIKA provides reliable power cables for marine facilities, including ports, piers, and shipyards. Our cables are designed for shore-to-ship temporary power, fixed power for docks and marinas, and to power equipment used in shipbuilding operations.

Trusted by public marinas and major shipyards across the US and Canada, TELE-FONIKA’s cables support operations from Norfolk, Virginia to Alaska, and from Maine to Florida.

TFCA - kontakt Bobek

Contact

Our experts will provide you with answers to any questions:

Krzysztof Bobek

T: (+1) 630 457 2042

M: (+1) 630 550 8241

kbobek@tfcable.com

Key Features:

  • Durability in Harsh Conditions: Our severe-duty EPR power cables (TYPE G, W, and GGC) are built to withstand the extreme environments of winter and ice buildup.
  • Flexibility for Harsh Movement: With superior resistance to the constant movement caused by wave action, our cables are designed to endure the maritime environment.
  • Rugged Design: Engineered to meet the tough demands of marine power applications, ensuring long-lasting performance.

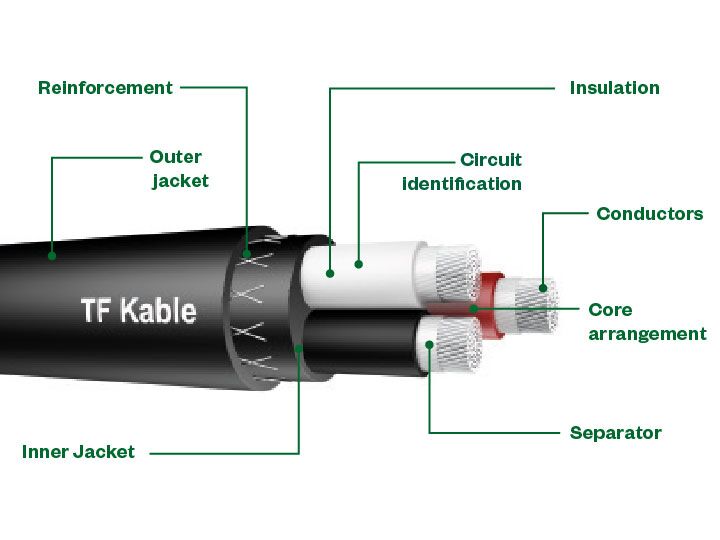

TYPE THOF ENHANCED 600V or 2000V

  • Outer Jacket - Black extra heavy duty, chloroprene synthetic thermosetting compound, developed by TF Kable for enhanced toughness, and tear, abrasion, crush resistance
  • Reinforcement - Braid of polyamide threads between inner and outer sheath
  • Inner Jacket - Black integral filled heavy duty, chloroprene synthetic thermosetting compound
  • Circuit identification - Color coding of power conductors: black, white, red
  • Insulation - A special EPDM rubber, halogen free, lead-free compound, developed by TF Kable
  • Conductors - 500kcmil - flexible stranded tin coated copper to ASTM B33 for protection against corrosion. Class I rope-laystranded conductor with bunch-stranded members
  • Core arrangement - Three power cores wrapped around rubber filler in the centre
  • Separator - A suitable polyester tape separator between the conductor and insulation
kabel z opisami-01.jpg

Shore-to-ship - three core rubber insulated, flexible power cable

The shore-to-ship power cable is a solution that provides safe mooring for ships in the port. In this way, it reduces exhaust emissions, enabling engines to be shut down, while maintaining business continuity through a portable power system. The cable structure has been designed in such a way that it withstands stresses caused by unconditional movements of the ship but also takes into account the high resistance to seawater, sun rays, and high humidity that accompanies these atmospheric conditions. Besides, it is highly resistant to repeated bending or crushing as a result of stress.

kabel z opisami-01.jpg

All information contained on the website and in the documents, including the tables and drawings, are provided for information only and not a commercial offer; nor may it constitute the basis for pursuing any claim against TELE-FONIKA Kable S.A.
